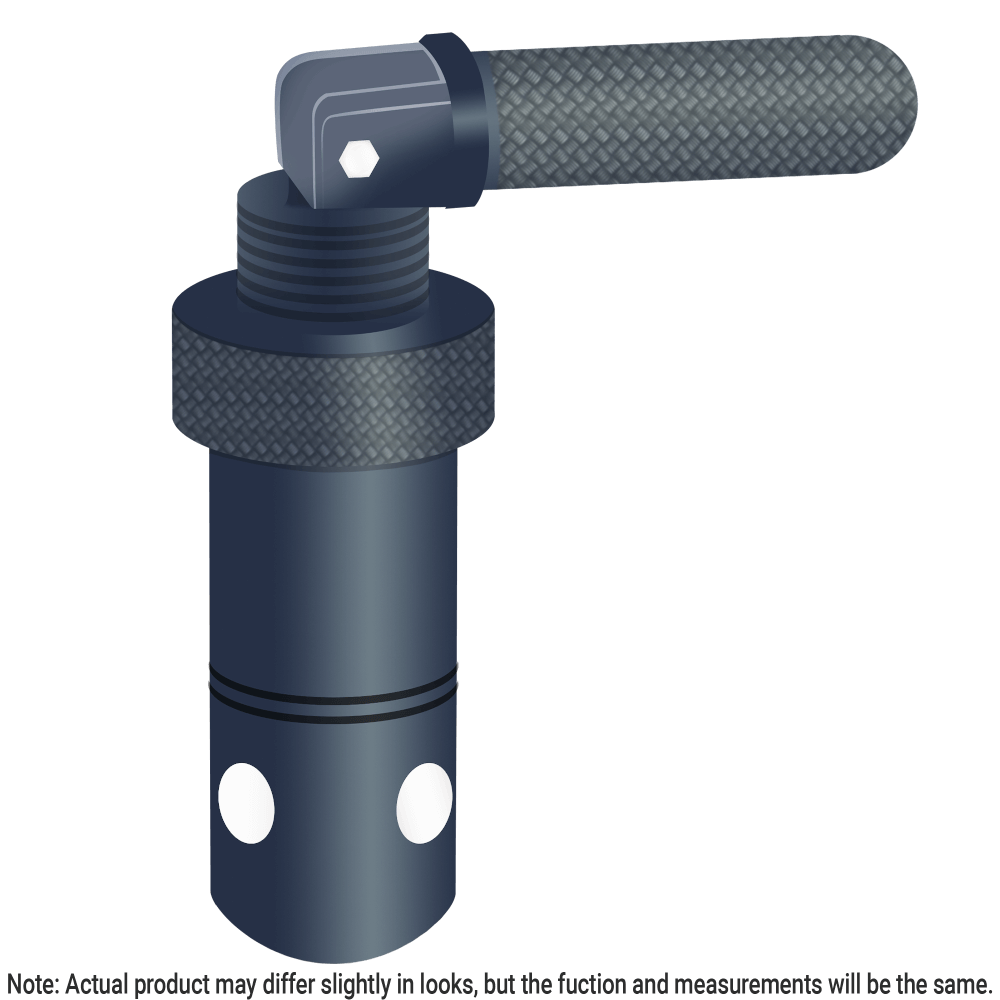

Handle Ball Locking Pin | K28

Handle Ball Locking Pin | K28

$25 Ex. GST

NOTE: Adding items to your enquiry is not possible from this page.

You’ll need to use our pricing tables for this:

Click here for K16 PRICING TABLE
Click here for K28 PRICING TABLE



Cheers!

SKU: K28-PIN-04 Category:

Description

DESCRIPTION
This specific pin allows you quickly lock anywhere from 30mm to 52mm total.

Every hole surface on K28 Table Tops/Fixtures share 25mm of plate thickness.

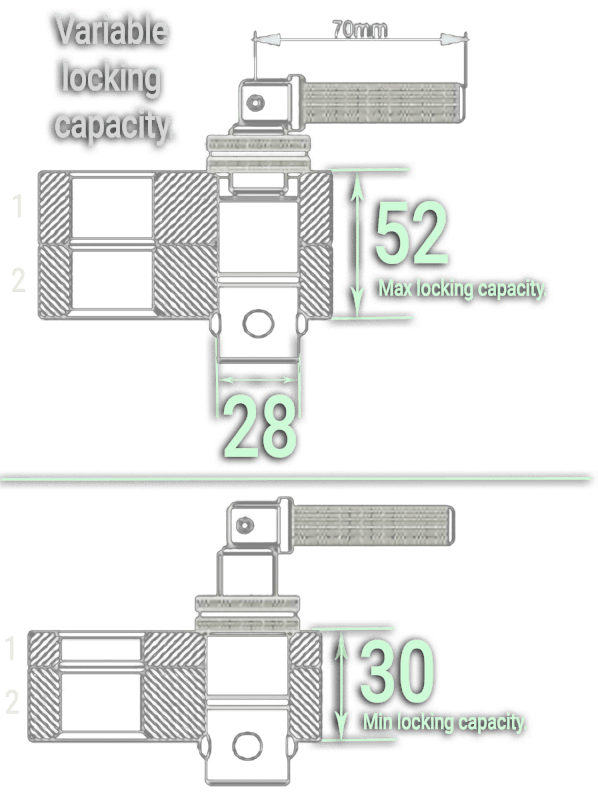

With a Variable locking capacity shown below these pin allow the use of packing a fixture when necessary.


MEASUREMENTS

DIRECTIONS
1. Place fixture in desired position.

2. Push pin in holes.

3. Twist top by hand to lock (an allan key or hex impact bit is used for a super tight lock).

Questions?

(03) 7020 0234  |  sales@koweldingtables.com.au

Additional information

Weight 0.58 kg
Dimensions Length: 215 mm × Width: 40 mm × Height: 40 mm
Weight (kg):

0.58
Material:

A36 Steel
Treatment:

Burnished
